General Filter 3 Module
PEM.PLUGYHP.PFIL.01.A.XX.XX
Description:

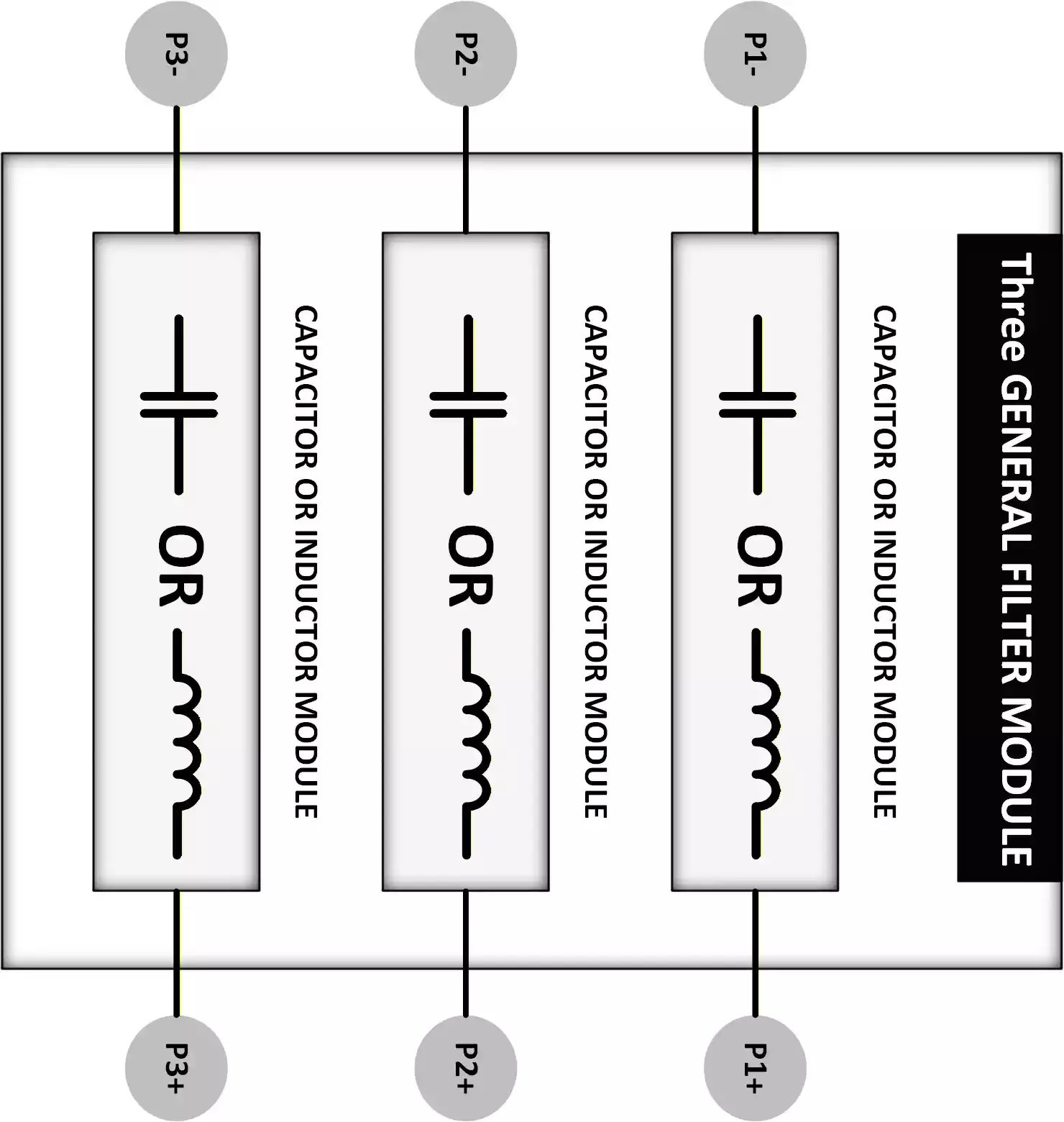

The PEModule PLUGY HP System General Filter carrying up-to Three modules can be inductors and/or capacitors based on application. It can work as a single phase LC low pass filters (LPF), three phase L or C low pass filters (LPF), LCL filter ..... etc based on connected modules and user connection.
Main Features:

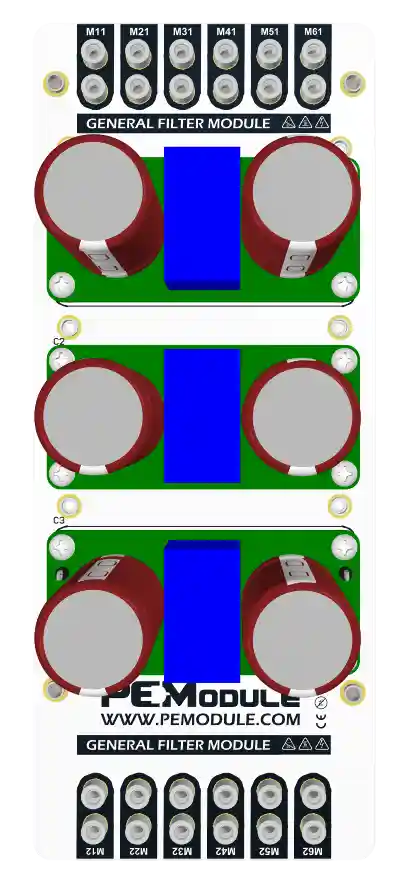

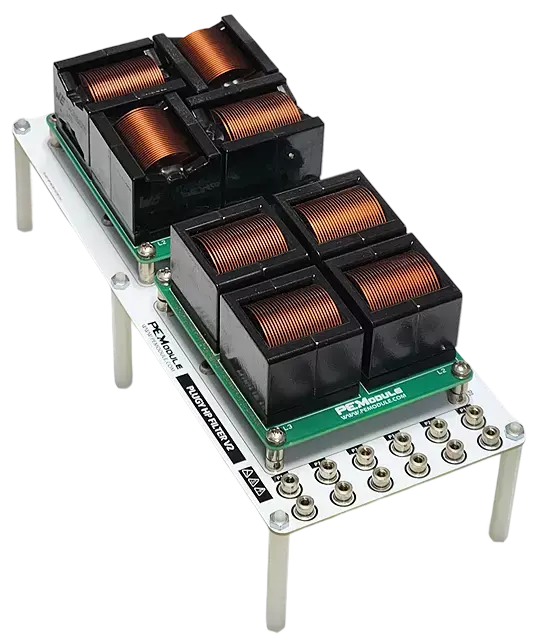

- Up-to 3 Easy To Replace Passive Modules 2 TOP and 1 BOTTOM (Capacitors or High Frequency Inductors)
- Capacitors can be selected (Electrolytic, DC Film or AC Film)
- Different Capacitors Models with different Voltage and Capacitance.
- Different Inductors Models with different current and Inductance.
- Open Power Terminals for multiple configurations
- Compact Size Width 10CM X Length 24CM X Height 12CM.
Follow us!
Follow us!
Modules Compatible with the Base Board
Modules Compatible with the Base Board
| Module | Description | Part no. |
|---|---|---|
| HF Inductor Module | High Frequency Inductor Module | PEM.INDC.HF.04.B.XX.X.XX.XXX |
| MF Inductor Module | Medium Frequency Inductor Module | PEM.INDC.MF.05.B.XX.X.XX.XXX |
| Capacitor Module | Electrolytic Capacitor Module | PEM.CAP.ELEC.0X.B.XXXX.XXXXX |
| Capacitor Module | DC Film Capacitor | PEM.CAP.DCFILM.03.B.XXXX.XXXXX |
